Voice Recognition Module

The toolkit uses an advanced Voice Recognition Module (e.g., Elechouse V3) for audio recognition and refined command control. This module can be trained to recognize custom voice commands.

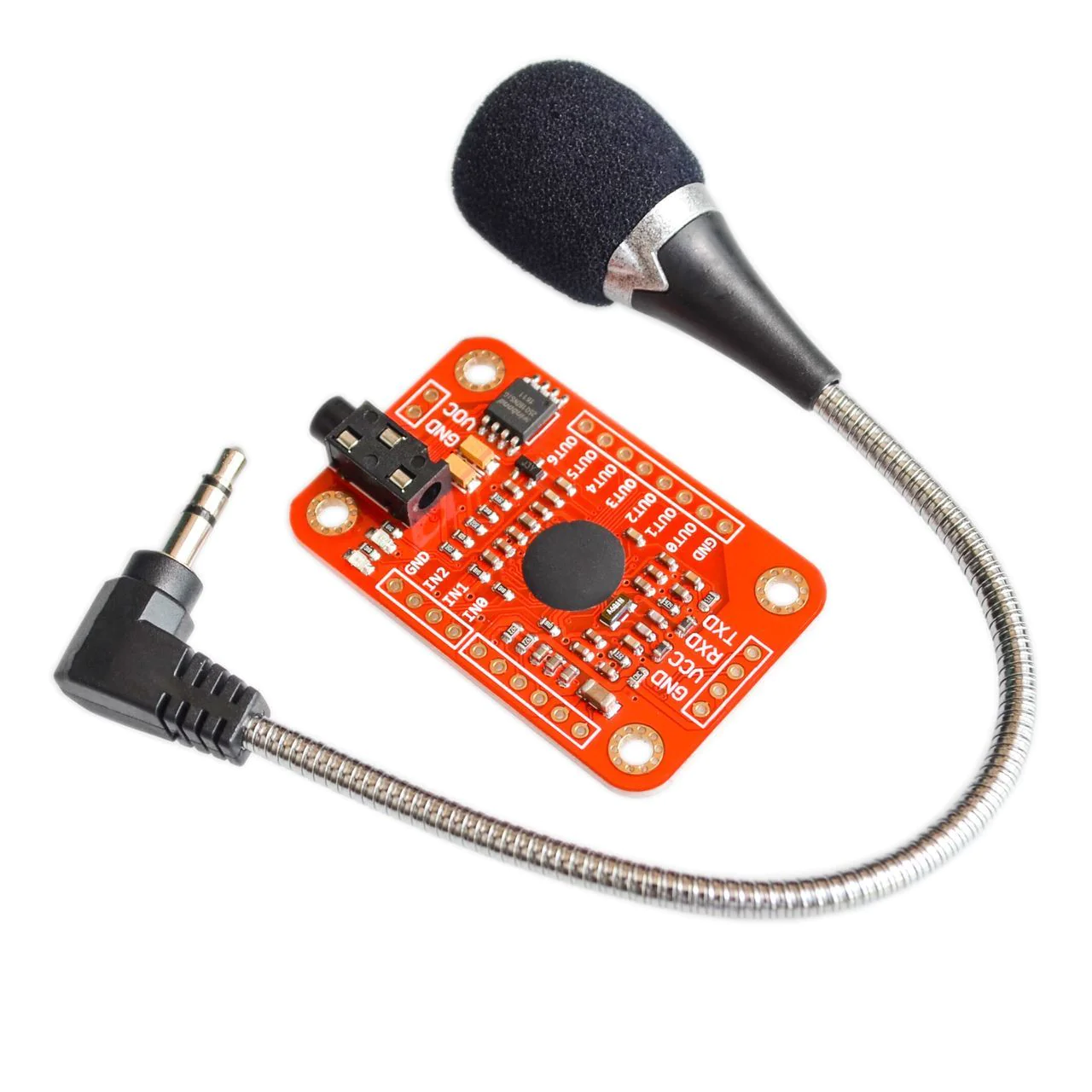

Voice Recognition Module

Voltage Level Shifting

The Voice Recognition Module typically operates at 5V, but the ESP32 GPIO pins are 3.3V. You must use a voltage divider (resistors) or a level shifter on the module's TX pin before connecting it to the ESP32 RX pin to avoid damaging your board.

Specifications

Parameter Value
Model Elechouse Voice Recognition V3
Interface UART (Serial)
Voltage 4.5V - 5.5V
Recognition Up to 80 commands (7 active)
Accuracy >90% (trained)

Pinout

Pin Function ESP32 Connection
VCC Power 5V / VIN
GND Ground GND
TX Data Output RX2 (GPIO16) via Level Shifter
RX Data Input TX2 (GPIO17)

Code Example

// Voice Recognition Module UART Test
#include <SoftwareSerial.h>
#include "VoiceRecognitionV3.h"

/**
  Connection:
  ESP32 RX2 (GPIO16) <--- Level Shifter <--- Module TX
  ESP32 TX2 (GPIO17) ---> Module RX
*/

VR myVR(16, 17);    // RX, TX

void setup() {
  Serial.begin(115200);
  myVR.begin(9600);

  if(myVR.clear() == 0){
    Serial.println("VR Module Cleared.");
  }else{
    Serial.println("VR Module not found.");
  }
}

void loop() {
  int ret = myVR.recognize(buf, 50);
  if(ret>0){
    Serial.print("Recognized: ");
    Serial.println(ret);
  }
}

Troubleshooting

Issue Solution
Module not found Check UART pins, verify 5V power supply
No command recognized Ensure commands are trained, check ambient noise
ESP32 crashes Verify voltage level shifter on TX pin
