LCD (LiquidCrystal I2C)

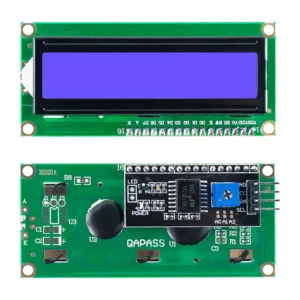

LCD Display

Overview

Character LCD display for simple text output of sensor readings.

Specifications

Parameter Value
Model
Type Character LCD
Size 16x2 or 20x4
Interface I2C
Controller HD44780 compatible
Operating Voltage 5V (with I2C backpack) or 3.3V
I2C Address Typically 0x27 or 0x3F

Pinout

Pin Function ESP32 Connection
VCC Power 5V or 3.3V
GND Ground GND
SDA I2C Data GPIO21
SCL I2C Clock GPIO22

Wiring Diagram

LCD (with I2C backpack)
       |
       |-- VCC --> 5V (or 3.3V)
       |-- GND --> GND
       |-- SDA --> GPIO21
       |-- SCL --> GPIO22

Required Libraries

#include <LiquidCrystal_I2C.h>

Install via Arduino IDE Library Manager.

Code Example

Basic Test

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Set I2C address (0x27 or 0x3F depending on your module)
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  Serial.begin(115200);

  // Initialize LCD
  lcd.init();
  lcd.backlight();

  // Display welcome message
  lcd.setCursor(0, 0);
  lcd.print("IoT Toolkit");
  lcd.setCursor(0, 1);
  lcd.print("LCD Test OK");

  Serial.println("LCD initialized");
}

void loop() {
  // Update display periodically
  lcd.setCursor(0, 1);
  lcd.print("Time: ");
  lcd.print(millis() / 1000);
  lcd.print("s   ");

  delay(1000);
}

Display Sensor Data

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

LiquidCrystal_I2C lcd(0x27, 16, 2);

// Simulated sensor values
float temperature = 25.5;
float humidity = 60.0;

void setup() {
  lcd.init();
  lcd.backlight();
}

void loop() {
  // Display temperature on line 1
  lcd.setCursor(0, 0);
  lcd.print("T: ");
  lcd.print(temperature, 1);
  lcd.print((char)223); // Degree symbol
  lcd.print("C  ");

  // Display humidity on line 2
  lcd.setCursor(0, 1);
  lcd.print("H: ");
  lcd.print(humidity, 1);
  lcd.print("%    ");

  // TODO: Replace with actual sensor readings

  delay(2000);
}

Testing

I2C Address Detection

Run I2C scanner to find LCD address:

#include <Wire.h>

void setup() {
  Wire.begin();
  Serial.begin(115200);
  Serial.println("\nI2C Scanner");
}

void loop() {
  for (byte address = 1; address < 127; address++) {
    Wire.beginTransmission(address);
    if (Wire.endTransmission() == 0) {
      Serial.print("I2C device at 0x");
      Serial.println(address, HEX);
    }
  }
  delay(5000);
}

Common addresses: - 0x27 (PCF8574T) - 0x3F (PCF8574AT)

Troubleshooting

Issue Solution
Blank screen Check I2C address, verify contrast potentiometer
I2C not detected Check wiring, verify 4.7kΩ pull-up resistors
Garbled text Check initialization sequence, verify power
Backlight not working Check power connections
Wrong characters Verify correct I2C address

Custom Characters

// Create custom degree symbol
byte degree[8] = {
  B00110,
  B01001,
  B01001,
  B00110,
  B00000,
  B00000,
  B00000,
  B00000
};

void setup() {
  lcd.init();
  lcd.createChar(0, degree);
  lcd.setCursor(0, 0);
  lcd.print("25");
  lcd.write(0); // Custom degree symbol
  lcd.print("C");
}
